Super V 3U

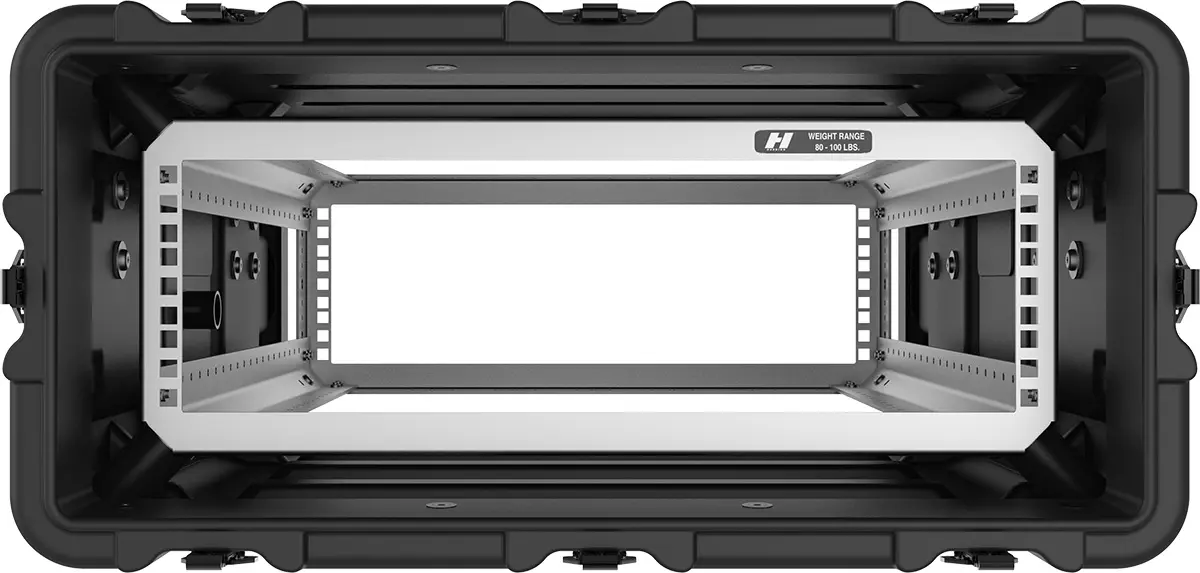

V-Series cases utilize a full-boxed 19″ steel rack with an industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.

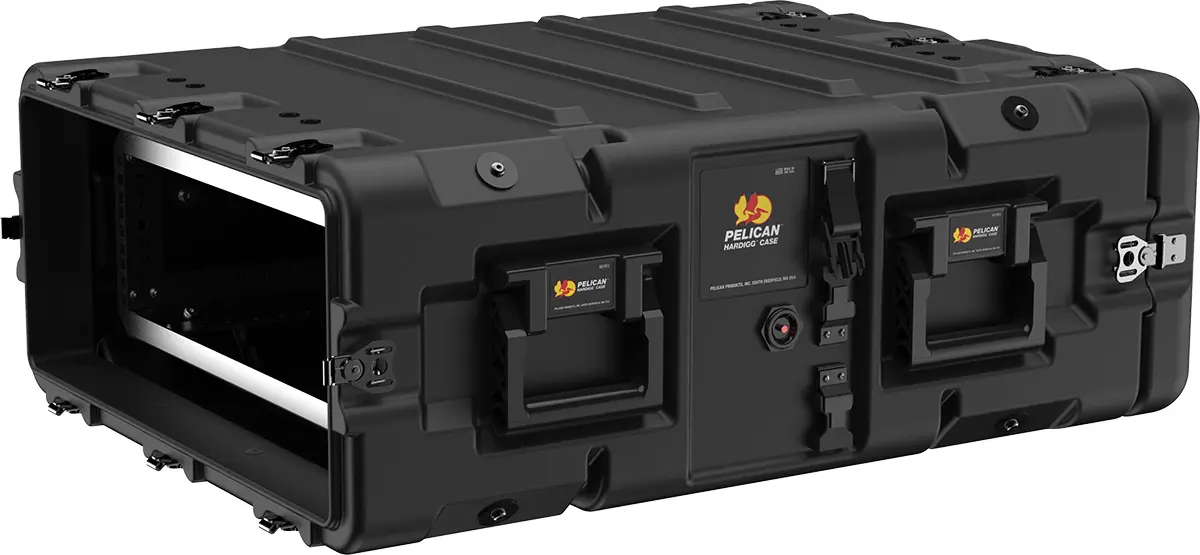

24″ Super-V Rack Mount Case is a smooth surface case with a 19″ wide and 24″ deep EIA standard rack.

• High-strength steel rack frame supports equipment from 10 – 50 kg
• Designed to meet the requirements of Def Stan 81-41 Level J, Mil Standard 810, STANAG 4340 and other European standards.
• Designed to meet ANSI/EIA-310-C for universal rack mounting hole pattern
• 10 different models, frame heights 4-12U in two depths, 480 and 610mm
• Fixed square hole frame for universal equipment fit
• 2” Front Lid, 5” Rear Lid
• Lid hangers for lid storage while in use
• Anti-reflective black hardware
• Coupling catches for secure stacking
• Sealed gasket and PRV keeps container watertight and eliminates over pressurization
• Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
• Comfort Grip plastic handles
• Molded in rear edge casters with handles on the lid for ease of movement
• REACH and RoHs compliant
