Super V 5U

V-Series cases utilize a full-boxed 19″ steel rack with an industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.

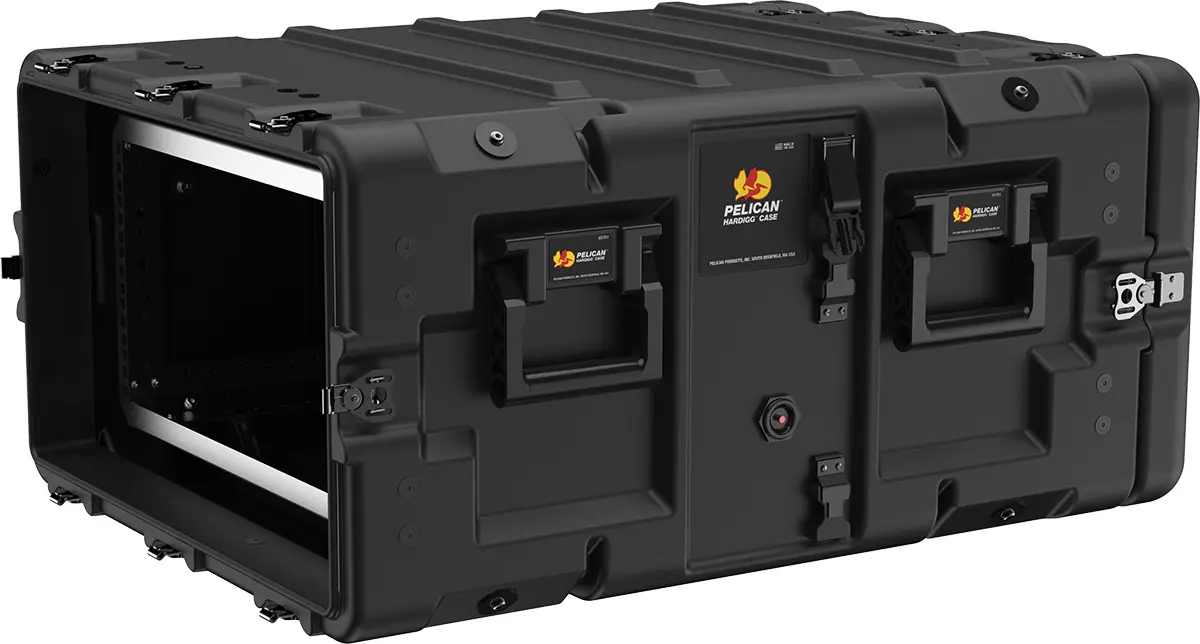

24″ Super-V Rack Mount Case is a smooth surface case with a 19″ wide and 24″ deep EIA standard rack.

• SUPER V-SERIES 5U, 2112-02/29/05W
• Engineered to provide secure transport for rack mountable electronics
• Equipment payload weight ranges for 3U – 5U = 80-100 lbs. (36-45 kg) per case
• Weight ranges for 7U – 14U = 100-170lbs per case

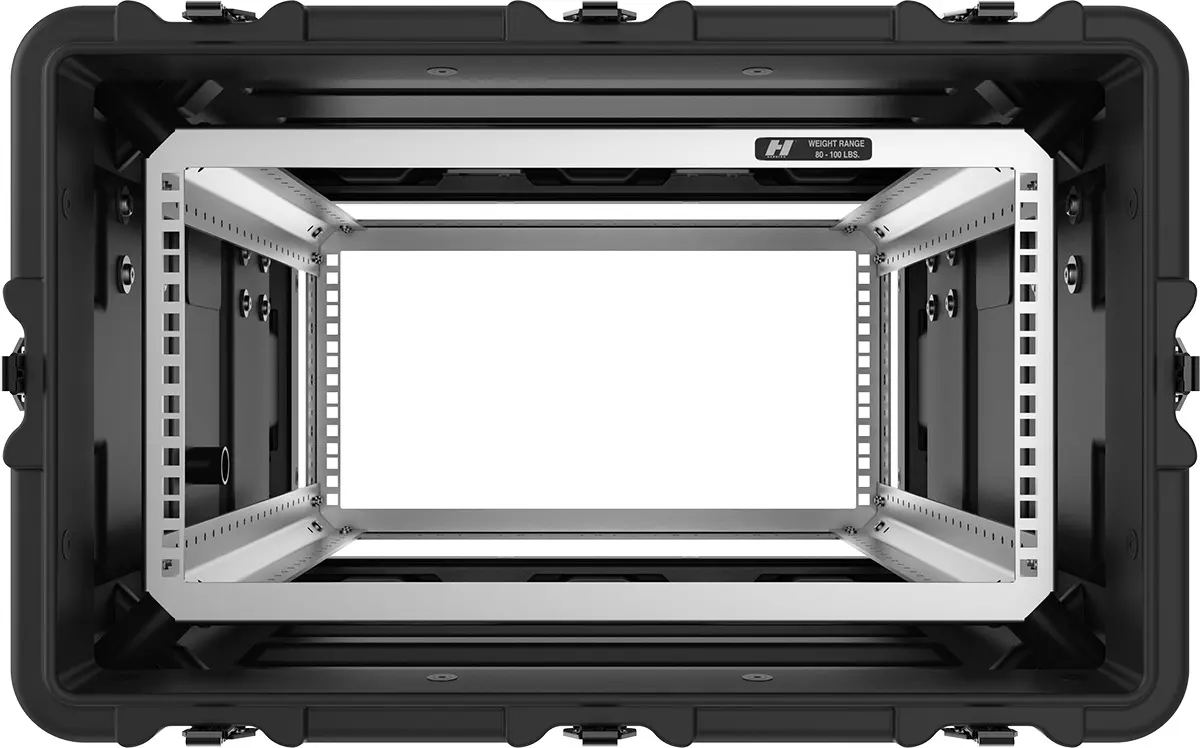

• Fixed square hole frame for universal equipment fit
• 2” Front Lid, 5” Rear Lid
• Lid hangers for lid storage while in use
• Anti-reflective black hardware
• Coupling catches for secure stacking
• Sealed gasket and PRV keeps container watertight and eliminates over pressurization
• Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
• Comfort Grip plastic handles
• Molded in rear edge casters with handles on the lid for ease of movement
• REACH and RoHs compliant
• Available in 3U, 4U, 5U, 7U, 9U, 11U, and 14U
